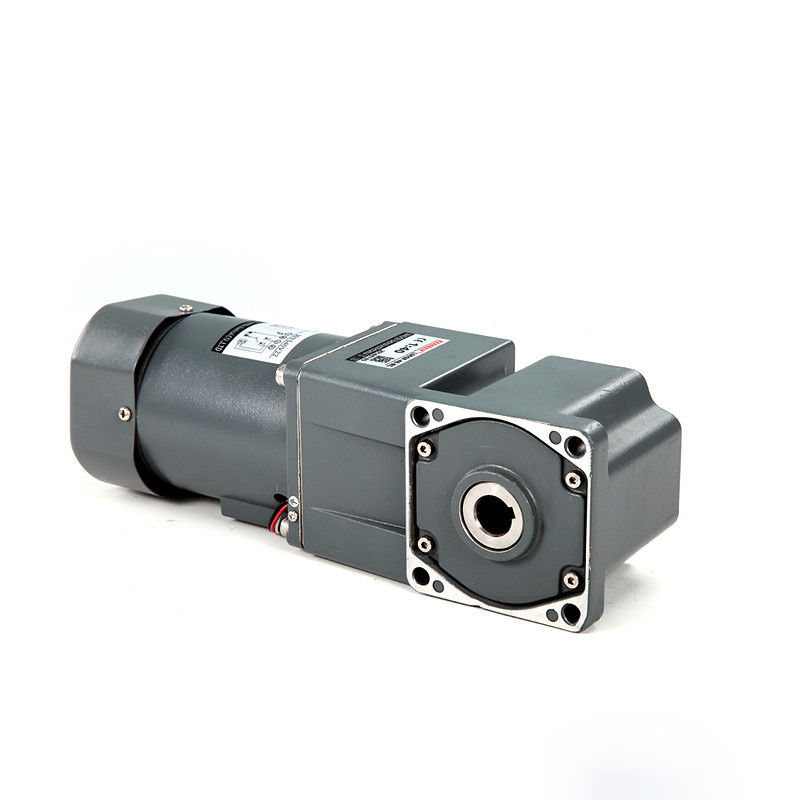

Toestelgrootte 60 van de de MotorTransportband van 220V Compacte Aangepaste het Toestelmotor
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | Wanshsin |
| Certificering: | ISO9001, CCC, CE |
| Modelnummer: | 90YS60WGV22+90GF100H |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stuk |
|---|---|
| Prijs: | Negotiable |
| Verpakking Details: | Kartonpakket |
| Levertijd: | 3-7 werkdagen |
| Betalingscondities: | Bevestigingsbrief, T / T, Western Union |
| Levering vermogen: | 20.000 stukken per maand |
|
Gedetailleerde informatie |
|||
| Verminderingsverhouding: | 1:3200 | Outputsnelheid: | 7-533rpm |
|---|---|---|---|
| Outputtorsie: | 0.11-44Nm | Inputsnelheid: | 400-1600rpm |
| Voltage: | 110V/220V/380V | Frequentie: | 50Hz, 60Hz |
| Toestelgrootte: | 60/70/80/90/100 | Schachtvorm: | Ronde, Spiebaan of Spiraalvormig Toestel |
| Hoog licht: | Grootte 60 Compacte Aangepaste Motor,de Compacte Aangepaste Motor van 220V,de Motor van het de Transportbandtoestel van 220V |
||
Productomschrijving
Small Geared Motor Output Torque 0.11-44Nm Gear Size: 60/70/80/90/100 for Conveyor Belts
Product Features
1 High stability:Load power is sufficient, stable operation, and low fatigue after long term use.
2 Various function to motor.
3 Multiple voltage.
4 Wide power range.
| MICRO AC MOTOR | 6W | 15W | 25W | 40W/60W | 90W/120W | 140W/160W | 180W/200W | 250W |
| Reduction Ratio | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 |
| 50HZ Rated torque | 0.13~3N.M | 0.30~5N.M | 0.50~8N.M | 0.77~10N.M(40W) 1.19~20N.M(60W) | 1.79~20N.M(90W) 2.25~20N.M(120W) | 2.62~44N.M(140W) 2.76~44N.M(160W) |
3.1~44N.M(180W) 3.44~44N.M(200W) |
4.26~44N.M |
| 60HZ Rated Torque | 0.11~3N.M | 0.25~5N.M | 0.41~8N.M | 0.64~10N.M(40W) 0.99~20N.M(60W) | 1.49~20N.M(90W) 1.87~20N.M(120W) | 2.19~44n.m(140W) 2.48~44N.M(160W) |
2.76~44N.M(180W) 2.87~44N.M(200W) |
3.83~44N.M |
| MICRO DC MOTOR | 60DC | 70DC | 80DC | 90DC | 100DC |
| Reduction Ratio | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 |
| Output Bearing speed | 533~8 | 533~8 | 533~8 | 533~8 | 600~9 |
| Rated torque | 0.129~3n.m | 0.26~5n.m | 0.386~8n.m | 0.52~20n.m |
2.578~44n.m |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
